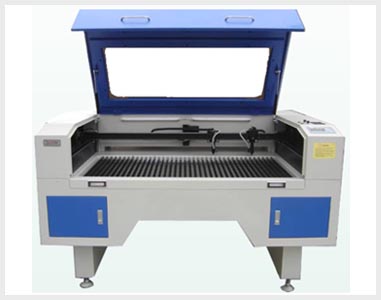

| Double-head Movable Laser Cutting Machine |
| Applicalbe Materials:Fabrics(silk,cotton,decoration,polyester,chemical fiber,pure fabric),leather(leather,artificial leather,decorative leather,packaging leather,soft leather),wool fabric and variety of surfaces. |
| Technical Parameters |
| product model |
GS+1260D/1280D/1490D/1680D/1612D/1910D |
laser power |
60W/80W/100W/130W/160W |
| cutting size |
1200*600mm, 1600*1200mm etc |
engraving speed |
64000mm/min. |
| cutting layers |
more than 256 layers |
resolution |
0.025mm |
| resetting accuracy |
0.01 |
graphic format |
AI,Plt,Cdr,Dxf
Dst,Bmp,Jpg,Tiff,PSD |
| Min size |
English
Letter: 1mm*1mm |
power |
220V/50Hz |
| whole power |
< 1600W |
operating temperature |
0C°~45C° |
|
|
Feature Description:
1. Accurate frame:Imported Japanese bearing are adopted to improve the movement accuracy of the machine .
2.Optimization of Arc engraving: Uses the arc processing system,which can perfectly deal the curve and circular arc and cut the edge smoothly.
3.Automatically control the distance between the two laser heads to make the cutting more convenient and intelligent.
4.Automatic protection:There's automatic smoke/dust-ejecting system,water cooling system,if there's no water or water flows in opposite direction,laser shooting will be stopped automatically,which protects the laser tube in an effective way.
5.Cover protection function:Power switch will turn on or turn off according to the open or close of the cover,which can protect the safe of operators.
|
| |
|
|
|
