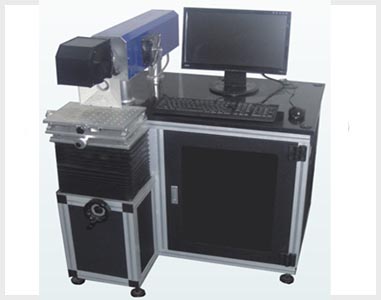

| Co2 RF Laser Marking Machine |
Application of Industry:
Suitable for marking/cutting on electronic components, plastic buttons, integrated circuit(IC), electrical appliances, mobiles; and marking on apparel in assembly line production, fabrics, tire surface, and also suitable for making on ceramic and glass.
Feature Description:
. Sealed optical system facilitate maintainance.
· Adopt US Synrad RF tube, with exquisite beam, stable power output, Long working lifetime.
· . High speed galvanometer scanning system with features of Compact structure, dust Proof, easy installation, Anti-interference capability etc.;The design is made under fully consideration of heat dissipation of Galvanometer motor and Driver Board, guaranteed the stability of the system under long term work situation.
· . The control card adopt PCI interface bus, support foot-switch.
· . Adopt red beam positioning system,facilitate accurate processing,reduce waste rate of materials.
· . Powerful Graphics edit function.
|
|
| Technical Parameters: |
| Product Model |
GS-RF30 |
Power |
30w |
| Laser wavelength |
10640 |
resolution |
0.2mm |
| pulse frequency |
≤20khz
|
marking sizes |
110mm×110mm
/ 175m×175mm / 300mm×300mm |
| marking speed |
≤7000mm
/ s |
min linear width |
0.2mm |
| min character |
0.8mm |
format support |
bmp,gif,jpg,pcx,tiff,plt,cdr,dwg,dxf |
| gross power |
＜1kw |
power supply |
220V±22V
/ 50Hz / 12A |
| cooling |
air cooling |
|
|
|
| |
|
|
|
